Context: Recent reports emphasize the significance of the Haber-Bosch process in converting atmospheric nitrogen into fertilizer, addressing the growing global food demand while highlighting the disparity between industrial and natural nitrogen replenishment methods.

• Through the Haber-Bosch process, a hundred million tonnes of nitrogen are extracted from the atmosphere and transformed into fertiliser, resulting in the addition of 165 million tonnes of reactive nitrogen to the soil.

• In comparison, natural biological processes generate an estimated 100-140 million tonnes of reactive nitrogen annually.

What Is Nitrogen?

• Nitrogen is a key element that makes up about 78% of the Earth's atmosphere, primarily in the form of molecular nitrogen (N2). Although abundant, this form of nitrogen is not usable by plants because it exists as a stable triple bond between two nitrogen atoms, making it inert and difficult to break apart.

• The Nitrogen Cycle: Nitrogen enters the soil in forms that plants can use, known as reactive nitrogen, through several natural processes:

• Lightning: When lightning strikes, it provides enough energy to break the nitrogen triple bond, creating nitrogen oxides (NO and NO2). These oxides can mix with water to form nitric acid, which falls as rain and enriches the soil.

• Bacteria: Certain bacteria, like Azotobacter and Rhizobia, can convert atmospheric nitrogen into reactive forms. Rhizobia live in the roots of legume plants, helping them absorb nitrogen while receiving nutrients in return.

• Aquatic Plants: Some aquatic ferns, like Azolla, work with bacteria to convert nitrogen into a usable form, acting as a natural fertilizer when they decay.

About Haber-Bosch Process

• The Haber-Bosch Process is a method used for synthesizing ammonia (NH3) from nitrogen (N2) and hydrogen (H2) gases.

• It was developed by Fritz Haber in the early 20th century and later industrialized by Carl Bosch.

• The process is a critical component of the modern agricultural industry, as ammonia serves as a key ingredient in fertilizers.

• This process has had a transformative impact on food production worldwide, enabling the large-scale manufacture of ammonia and thereby contributing significantly to global crop yields.

What is the process?

• The Haber-Bosch Process operates under high pressure (150-200 atmospheres) and high temperature (400-500 °C).

• The reaction takes place in the presence of an iron catalyst, which is crucial for improving the reaction rate and making the process feasible on an industrial scale.

• The balanced chemical equation for the reaction is: N2?+3H2?→2NH3?

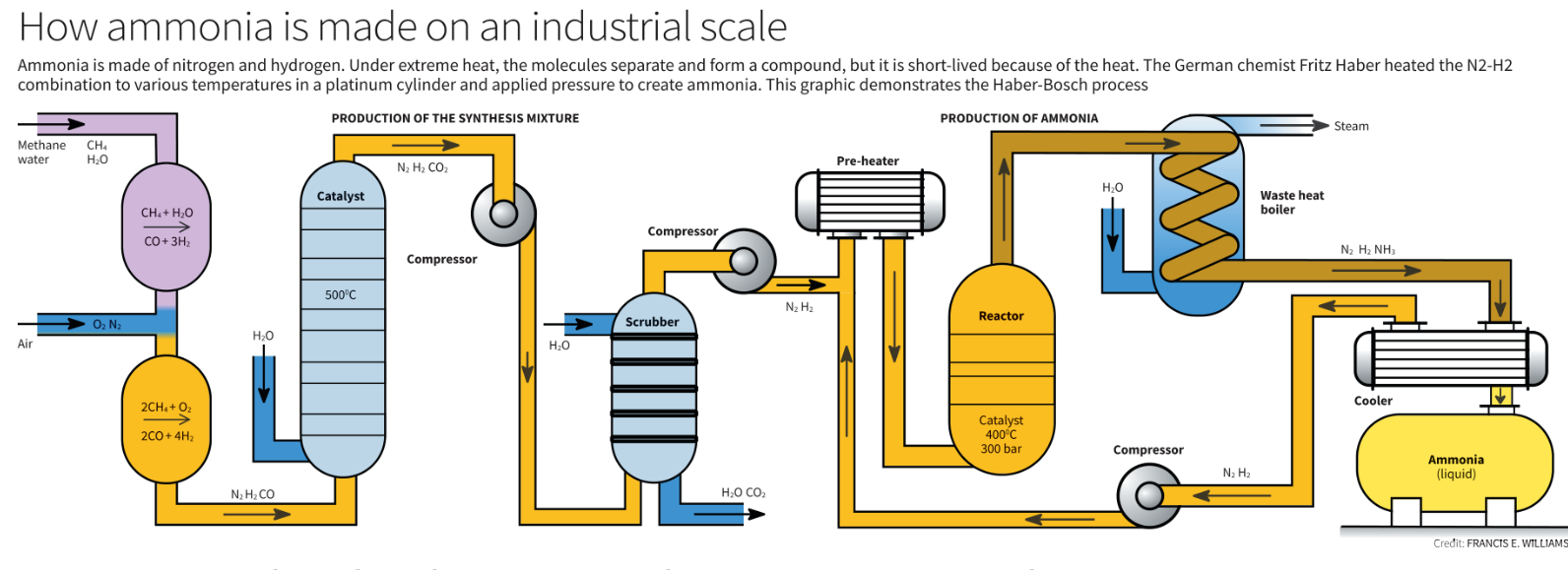

Key Steps in the Process

• Gas Preparation: Nitrogen is typically obtained from the air, which contains about 78% nitrogen. Hydrogen can be derived from natural gas, coal, or water electrolysis.

• Mixing and Compression: The nitrogen and hydrogen gases are purified, mixed in a 1:3 ratio, and then compressed to the required pressure.

• Catalytic Reaction: The gas mixture is heated and passed over an iron catalyst bed. This promotes the conversion of nitrogen and hydrogen into ammonia.

• Cooling and Ammonia Separation: After passing over the catalyst, the gas mixture is cooled. Ammonia, being a condensable gas, liquefies and is separated from the unreacted gases.

• Recycling of Unreacted Gases: The leftover nitrogen and hydrogen gases are recycled back into the reactor to maximize efficiency and reduce waste.

Industrial Importance

• The Haber-Bosch Process is essential for producing ammonia on an industrial scale. Ammonia is a precursor for various nitrogen-based fertilizers, which are vital for crop growth.

Environmental Impact

• Despite its benefits, the Haber-Bosch Process is energy-intensive and contributes to greenhouse gas emissions due to the use of fossil fuels in hydrogen production.

• Efforts are underway to make the process more sustainable, including research into alternative hydrogen sources (such as renewable-powered electrolysis) and improved catalysts that could operate at lower temperatures and pressures.
